To write our test query, we'll use Apollo Explorer. The Explorer is free to use, and it provides awesome development features like interactive query building, query history, and response hints. This will make building our queries fast and fun.
Since we're still in the local development stage of building our graph, we'll start by opening the Explorer in Apollo Sandbox. Sandbox is a special mode of GraphOS Studio that lets you test your local graph changes before deploying them.
Note: To learn how to deploy your app to production, check out Side Quest: Deploying an Apollo app with Railway
To open the Explorer in Apollo Sandbox, you can cmd+click on the URL in your terminal (from starting the server) to open it in your browser, or you can open it here: http://localhost:4000.

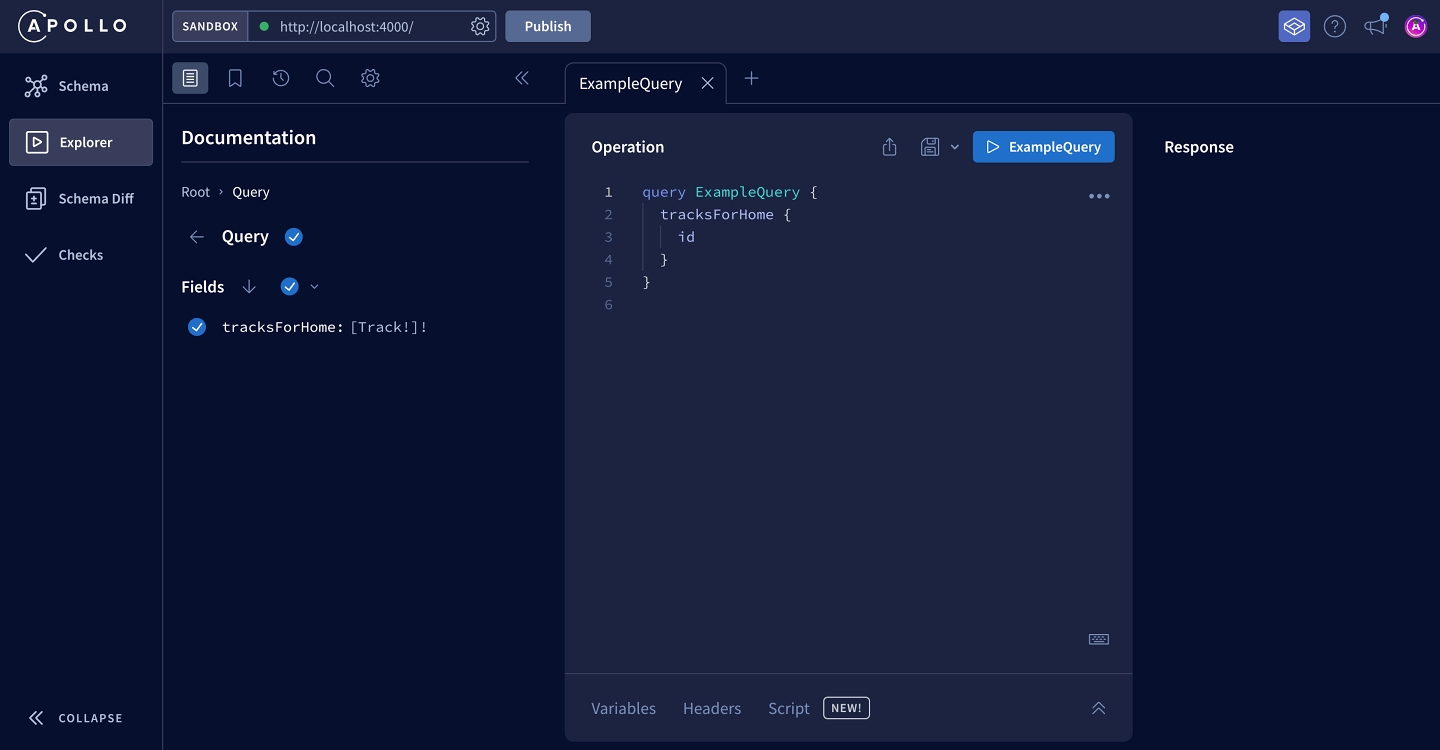

In the browser, we can see Sandbox with Explorer open and connected to localhost:4000. It should look something like this:
The Operation panel in the middle is where we create queries. The Explorer has already filled in a default operation that uses our tracksForHome query! You can edit the operation directly or add fields from the Documentation tab (more on this below).
At the top of the Operation panel is the button to run our query. Let's click it now and see what happens:
The Response panel on the right displays our list of track IDs. Sweet!
The Explorer's Documentation tab enables you to drill down into your schema's fields, starting at the entry points of the Query type.
When you click on a field, you can see the description we added, along with the field's subfields (if it has any).
Clicking on the plus (⊕) button next to a field automatically adds that field to the query in the Operation panel. This is a handy way to assemble complex queries without needing to remember your schema's exact structure.

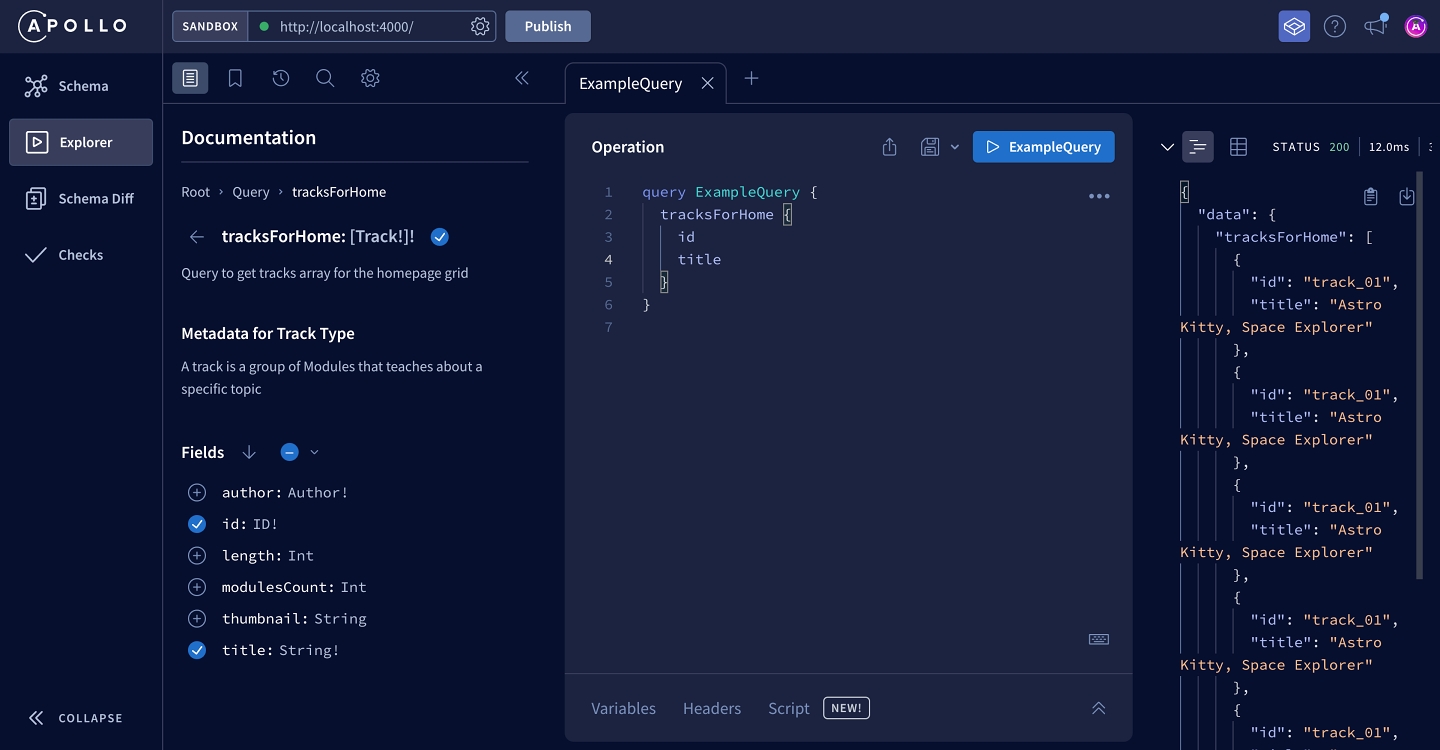

Let's add the title field to our query and run it again. You'll see the updated response in the Response panel.
Adding all fields
Right now, we've selected only the id and title fields, but the Explorer also has a way to add all fields to an operation at once. When we click the dropdown by the Fields subheading, we'll see that we have two options.
First, we have the option to Select all scalar fields. This will select all of the fields on the tracksForHome type that return a value that does not have additional subfields.
Click Select all scalar fields. We'll see the thumbnail, length and modulesCount fields have been added to our query.
All of our scalar fields are taken care of, but we'll notice that the author field was not added. This is because the author field does not return a scalar type—it returns an object type with additional subfields! Fortunately, there's another option in Explorer that will add all fields at once, whether they return a scalar or object type. Let's click the dropdown by the Fields subheading again.
The second option in this dropdown is to Select all fields recursively. This means that in addition to adding all scalar fields to our operation, we can include fields that return an object type, along with all of the object type's subfields! Let's see what this looks like in practice.
When we click Select all fields recursively, the query updates.
We can see that the author field has been included in the query, along with all of its subfields: id, name and photo. By adding all fields recursively, we're able to include all the subfields of the Author type without having to select them one-by-one.
Running the query
While we're here, let's rename our operation from ExampleQuery to GetTracks so it's more obvious what it's for. Your completed operation should match the following:
